4-22-12

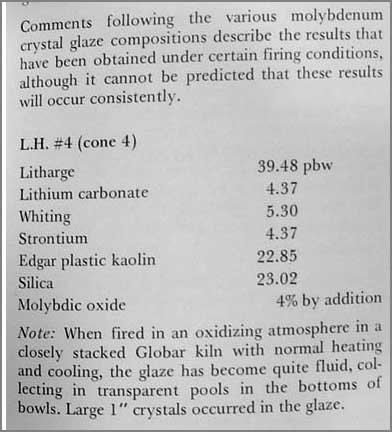

Sanders reports this as a cone 4 glaze

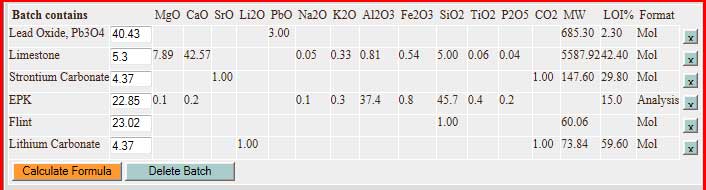

I substituted 40.43g red lead for litharge and input the formula into online_glaze_calculator,com

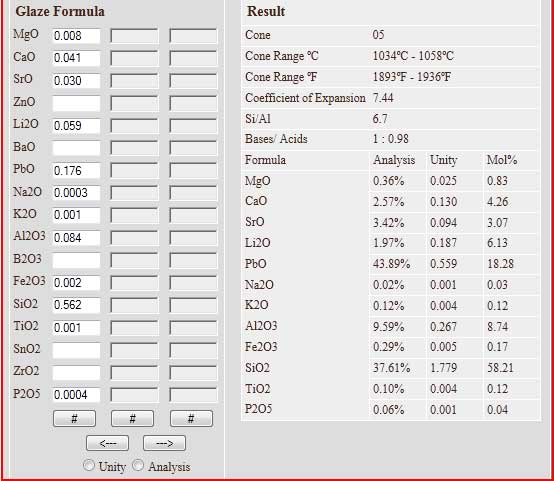

It analyzes it as a cone 05 glaze. It is curious to note that this program shows the 3110 based crystalline glaze I use at ^11 as a ^01 glaze,

Pukall listed a glaze of interest.

In one test the following frit was used:

     0.367 PbO

   c)0.257 CaO   .   0.300 Al2O3    .   3.570 SiO2

            0.179 K2O                          0.326 B2O3

     0.163 Na2O

     0.043 MgO

and batches weight recipes:

c)

99.52 Feldspar

31.22 Zettlitz Kaolin raw

135.24 Sand from Hohenbocka

62.27 Borax, crystallized

83.77 Red Lead

25.70 Marble Dust

2.86 Magnesite

__________________

parts by weight

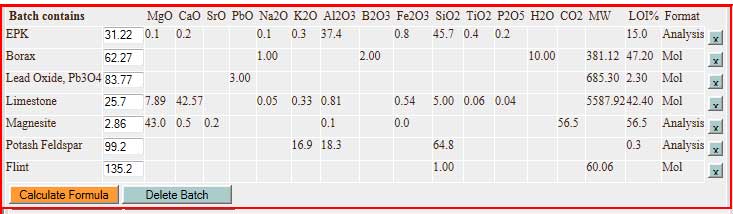

I input materials that were listed on  materials online_glaze_calculator.com

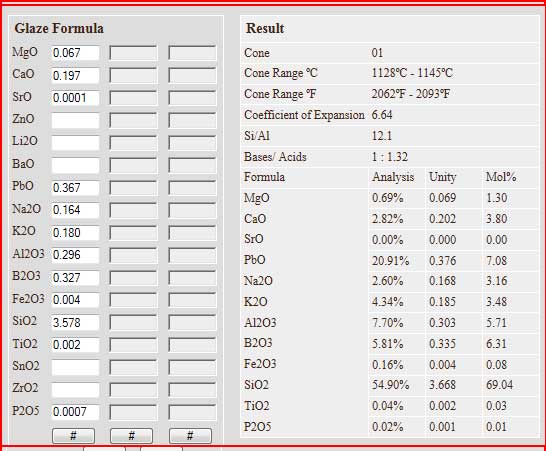

and got this analysis which differs from Pukall's  and lists it as a cone 01 glaze. I believe he wrote fire to seger cone 6.

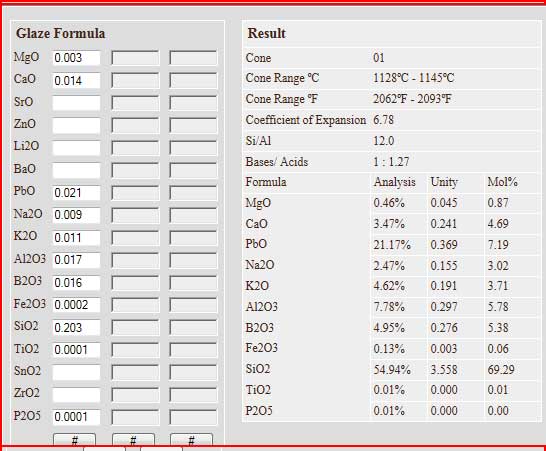

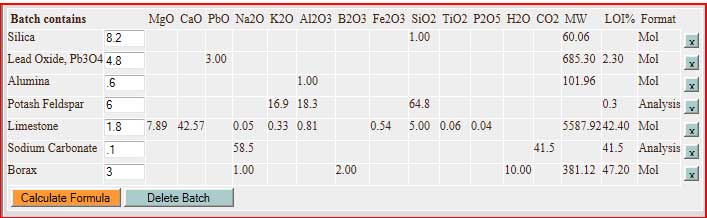

I tried to more closely match Pukall's unity formula numbers using materials I have and came up with this possibility.

Back to Current Page
